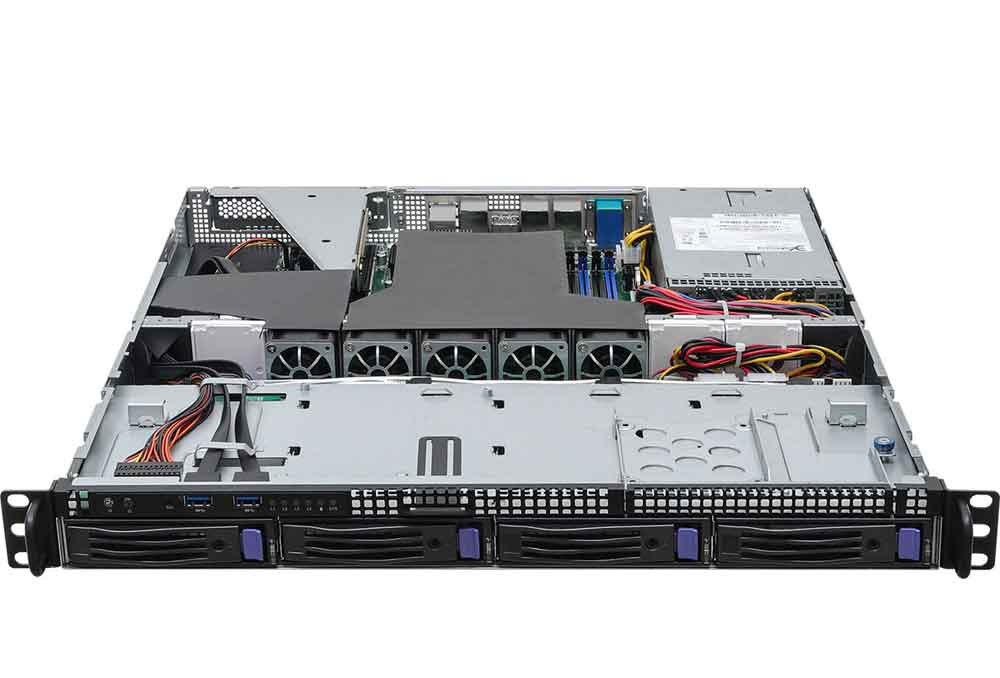

ET/3100 Short Depth Appliance

The ET/3100 is a high end bandwidth management system which can meet your high density or high capacity needs with an optional redundant P/S and up to 16 physical CPU cores. Based on the AMD AM5 Epyc/Ryzen family; the R3100 supports up to 16 cores that can handle a full 10g network.

The base system includes a single 10/100/1000 bypass card and 4 onboard ethernet ports. The ET/R3100 includes a second hard drive that is maintained as a backup. Should your first disk fail, you can simply swap the drive and reboot and you'll be up and running

Hardware Features

• Redundant Power Supply
• Dual or Quad SATA3 HDD with hot swap backup
• 1 HL PCIe Slot
• AMD Epyc/Ryzen CPU
• IPMI Remote Management and Reboot
• Can Manage 10 gigabit of traffic
• 16-64GB SRAM

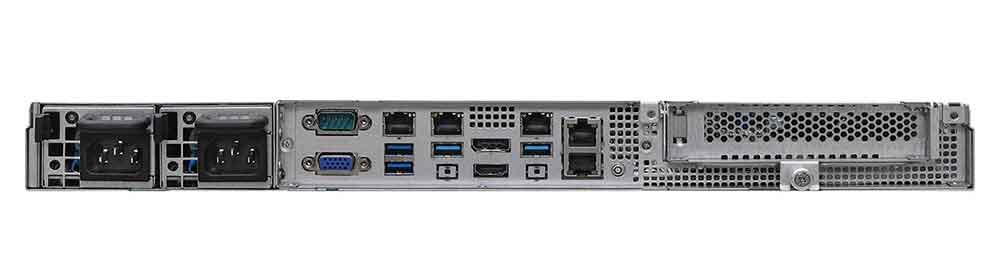

• 4 10/100/1000 Ethernet ports, 2 with Failover/Bypass, 2 100/1000/10g Ports (4 onboard, 2 bypass)
• Optional 4 or 6 Failover/Bypass ports
• Standard SVGA and Keyboard Inputs

Dimensions:

21” x 16.9” x 1.7” (1U) 38lbs

Approvals

• UL
• CE
• ROHS Compliant

Software Features:

• Runs on an Optimized FreeBSD 14
• Incremental Licensing from 500Mb/s to 10Gb/s
• Complete HTML/PHP Graphical Management Interface
  • Screen Shots

• Backup Utility to HDD and USB Drive (bootable backup)
• Multipath Capable
• Can Manage Bandwidth for 1000's of Hosts, Networks or Traffic Types
• Control Bandwidth by IP address or Protocol
• Integrated Graphical Analysis of Traffic (via HTML interface)
• Integrated Firewalling
• Full Featured Bandwidth Management Capabilities
• Full TCP Shaping/Pacing
• Real Time Traffic Monitor
• Statistical Gathering and Reporting
• Customers Portal to View Usage
• See Complete Software Description

Warranty and Support

• 6 months Parts Warranty
• Installation Support (30 days included)
• System/Software Support (paid Update and Support Subscription)
  • Unlimited Web Ticket System
