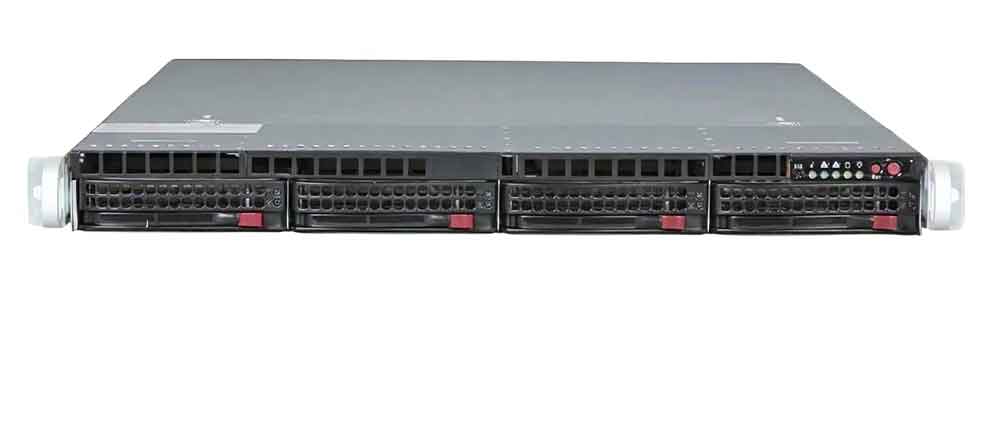

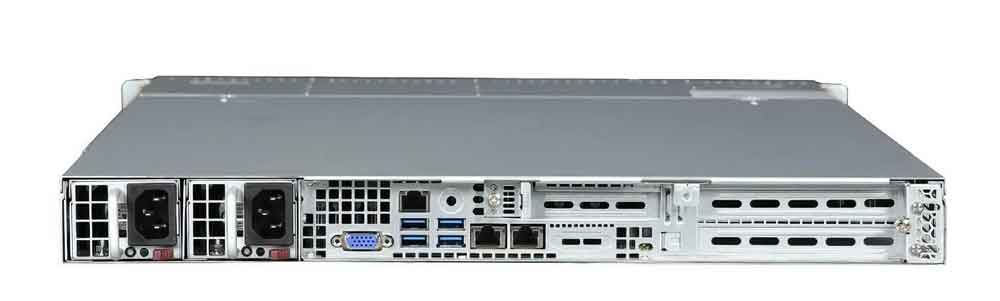

ET/R2800-DUAL-WR Appliance

The ET/R2800-DUAL-WR is a high-end bandwidth management system which can meet your high density or high capacity needs with an optional redundant P/S and up to 24 physical CPU cores.

The WR systems have room for 2 bypass cards with options for copper and fiber up to 10Gb/s. The ET/R2800-DUAL-WR includes a second hard drive that is maintained as a backup. Should your first disk fail, you can simply swap the drive and reboot and you'll be up and running

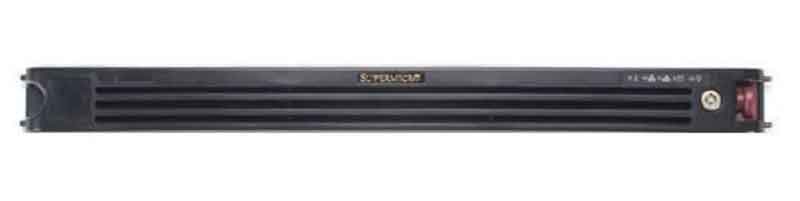

Optional front Bezel:

Hardware Features

• Redundant Power Supply
• Dual or Quad SATA3 HDD with hot swap backup
• 2 PCIe Slots
• Dual E5 Xeon CPUs
• IPMI Remote Management and Reboot
• Easily Handles Multi-Gigabit Throughput
• 16-64GB SRAM
• 4 10/100/1000 Ethernet ports, 2 with Failover/Bypass
• Optional Quad Bypass or 10g Bypass Cards
• Standard SVGA and Keyboard Inputs

Dimensions

17.2" X 26" X 1.7 (1U) 38lbs

Approvals

• UL
• CE
• ROHS Compliant

Software Features:

• Runs on an Optimized FreeBSD 14
• Incremental Licensing from 100Mb/s to 10Gb/s
• Complete HTML/PHP Graphical Management Interface
  • Screen Shots
• Backup Utility to HDD and USB Drive (bootable backup)
• Transparent Bridging (like an ethernet switch)
• Can Manage Bandwidth for 1000's of Hosts, Networks or Traffic Types
• Control Bandwidth by IP address or Protocol
• Traffic Priorization
• Integrated Firewalling
• Full Featured Bandwidth Management Capabilities
• Real Time Traffic Monitor
• Statistical Gathering and Reporting for type of traffic
• Customer Portal: Allow Customers/Users to View their Traffic Graphs
• See Complete Software Description

Warranty and Support

• 6 months Parts Warranty
• Installation Support (30 days included)
• System/Software Support (paid Update and Support Subscription)
  • Unlimited Web Ticket System
